NEAS-43B080

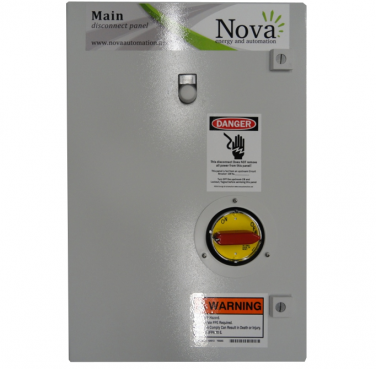

175 Amp 480V Panel w/ Under Voltage
Catalog #NEAS-175-G-UV
175 Amp 480V Panel w/ Under Voltage
$1,925
Total no of product in stock 1
Qty
Add to Quote
Voltage 480 VAC
Amps 175
Warranty 1 year factory warranty
Rating UL/cUL/CE
Time to Deliver 3-5 days
Need help? We can assist.

Features

Compatible with Siemens and Shimadzu X-ray
Factory wired to match imaging equipment and tested
Labeled to conform with NFPA 99, NFPA-70, NEC 100, NEC 110-3, NEC660.5
ADA Through the door disconnect handle provides one hand ON/OFF Operation
Internally Derived 24VAC for Controls

Specifications

  • Width: 16 inch
  • Height: 24 inch
  • Weight: 35 pounds
  • Size: 6inchX16inchX24inch

Download

Spec Sheet: NEAS-175-G-UV.pdf
