NEA080RT
30 Amp 480V MDP Equal to GEX640NM25A480V
Catalog #NEA-43030-5W-UV(120AC)-NM-HCN
30 Amp 480V MDP Equal to GEX640NM25A480V
$2,404
Total no of product in stock 1
Voltage 480VAC
Amps 30
Warranty 1 year factory warranty
Rating UL/cUL/CE
Time to Deliver 3 weeks
Need help? We can assist.

Features

Low Cost Alternate to GEX640NM25A480V

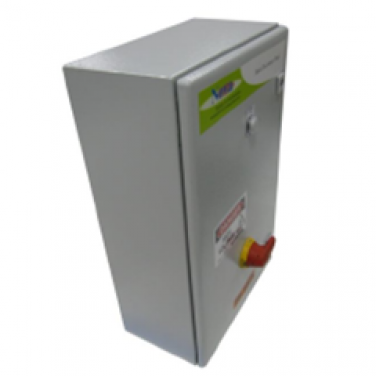

Electrical Main Disconnect Panel, MDP, A Panel, specific to GE Healthcare Nuclear Medicine Optima 640 Installations. Equal to item GEX640NM25A480V. 30 Amp 480V Disconnect Panel. Provides emergency shut down, undervoltage protection, overcurrent protection, OSHA lockout tag provisions, UPS controls, and serves as a local disconnect for the GE Healthcare Diagnostic Imaging Systems. Compatible with GE Healthcare Optima NM/CT 640 and several other similar installations.
Factory wired to match imaging equipment and tested
Labeled to conform with NFPA 99, NFPA-70, NEC 100, NEC 110-3, NEC660.5
Internally Derived 120AC AND 12VDC for Controls
Includes 2 Emergency Stop Buttons

Specifications

  • Width: 16 inch
  • Height: 24 inch
  • Weight: 45 pounds
  • Size: 6inchX16inchX24inch
